Batch blenders

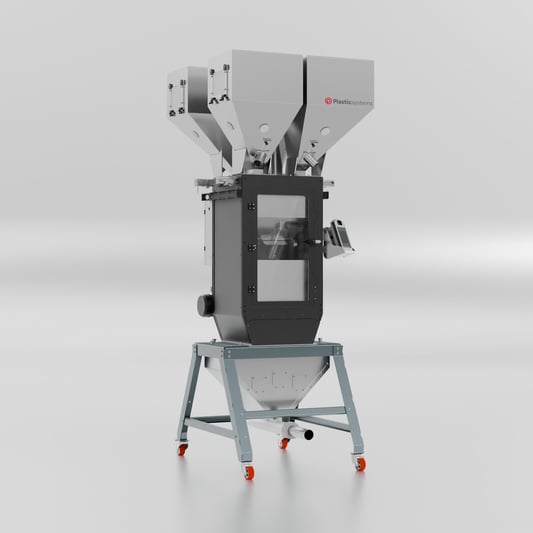

Gravimetric batch dosing

In gravimetric batch dosing, each component is accurately weighed and composed in the right proportion before entering the production process. There are 9 standard models with configurations from 2 to 8 components. The entire dosing cycle is automated: via the integrated touchscreen, the operator easily sets the desired dosing percentages per material. Each component is weighed in its own dosing hopper; once the total batch weight is reached, the materials are discharged into the mixer and processed into a homogeneous mixture.

Technical features:

Nine models for production up to 3,000 kg/h in various configurations
PLC or microprocessor control with colour touchscreen
Batch hopper with load cells; mixer with load cells or level sensor
Set-up and reporting downloadable to an external drive
Stainless steel hoppers with manual slide for quick material discharge
RS485 Modbus/OPC-UA; Profinet-interface (PLC-versie)
Screw dosing unit for low percentages

Added value:

Continuous monitoring of the weighing process
Automatic compensation for density variations per component
Automatic recalibration
Direct setting of component percentages
Accurate and reliable control
Patented load cells under the mixer

Specifications

	DGB 50	DGB 100	DGB 200	DGB 500	DGB 800	DGB 1200	DGB 1500	DGB 2000	DGB 3000
Max. throughput (kg/h) *	50	150	200	500	800	1200	1500	2000	3000
Components (no.)	2–4	2–6	2–6	2–6	2–6	2–8	2–8	2–8	2–8
Dosing range (%)	0,5–100	0,5–100	0,5–100	0,3–100	0,3–100	0,3–100	0,3–100	0,3–100	0,3–100
Batch (kg)	0,5	2	2	5	8	12	15	20	30
Installed power (kW)	0,5	0,55	0,55	1,2	1,2	1,2	1,2	2,1	2,1
Voltage (V) / Frequency (Hz)	400 / 50-60	400 / 50-60	400 / 50-60	400 / 50-60	400 / 50-60	400 / 50-60	400 / 50-60	400 / 50-60	400 / 50-60

* Value for a 2-component recipe (granulate, bulk density 0.7 kg/dm³).
