CRN crystallisers

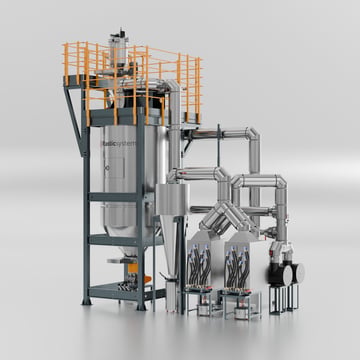

The CRN crystalliser optimises the pre-drying and crystallising of plastic flakes and granulate, with a low-speed vertical stirring system.
Crystallisers
 |
CRN series – CrystallisersThe CRN crystalliser optimises the pre-drying and crystallising of plastic flakes or granulate. A low-speed vertical stirring system minimises dust; temperature is controlled via PLC with PID. Processes regrind/flakes without blockages and reduces residual moisture to below 800 ppm. Available from 50 to over 7,000 litres. Technical features:
Added value:
|
| Model | CRN50 | CRN300 | CRN600 | CRN1000 | CRN1500 | CRN2000 | CRN3000 | CRN4000 | CRN7000 |
|---|---|---|---|---|---|---|---|---|---|
| Throughput granulate (kg/h) | 25 | 125 | 250 | 400 | 600 | 800 | 1200 | 1600 | 2800 |
| Throughput flakes (kg/h) | 15 | 80 | 160 | 270 | 400 | 550 | 800 | 1000 | 1800 |
| Air flow (m³/h) | 60 | 300 | 600 | 1000 | 1500 | 1500 | 2500 | 3200 | 5600 |
| Heating power (kW) | 3,5 | 14,4 | 14,4 | 27 | 54 | 54 | 81 | 108 | 135/162 |
| Installed power (kW) | 4,5 | 23 | 23 | 35,1 | 72,3 | 72,3 | 109,2 | 136,2 | 182/209 |
Drying & crystallising brochure
Would you like the complete overview of the drying and crystallising solutions? The brochure presents all series, technical features and specifications at a glance.
